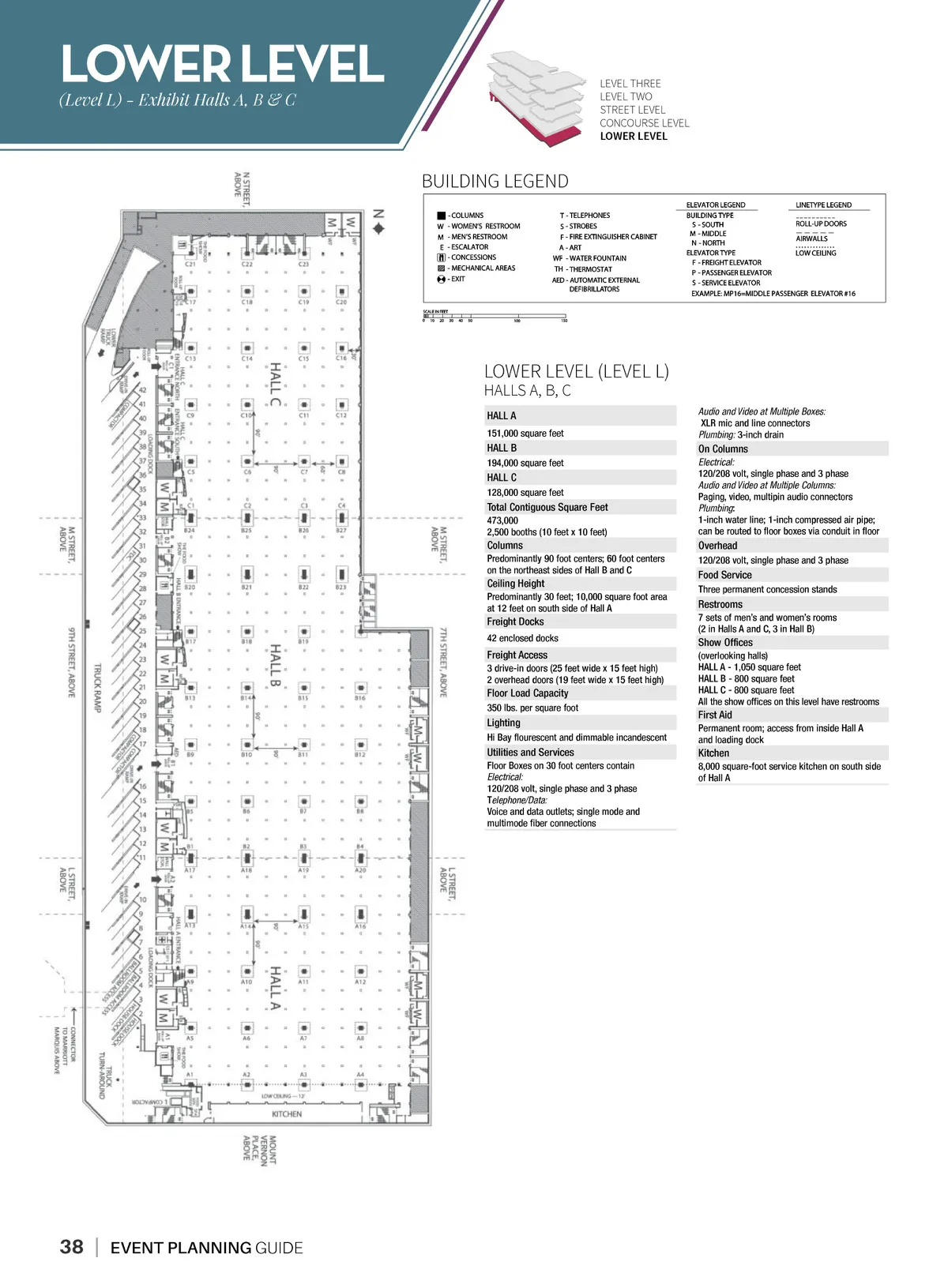

LEVEL LOWER LEVEL (Level L) -Exhibit Halls A, B & C LEVEL THREE LEVEL TWO STREET LEVEL CONCOURSE LEVEL LOWER LEVEL BUILDING LEGEND LOWER LEVEL (LEVEL L) HALLS A, B, C HALL A 151,000 square feet Audio and Video at Multiple Boxes: XLR mic and line connectors Plumbing: 3-inch drain HALL B 194,000 square feet On Columns Electrical: 120/208 volt, single phase and 3 phase Audio and Video at Multiple Columns: Paging, video, multipin audio connectors Plumbing : 1-inch water line; 1-inch compressed air pipe; can be routed to floor boxes via conduit in floor HALL C 128,000 square feet Total Contiguous Square Feet 473,000 2,500 booths (10 feet x 10 feet) Columns Predominantly 90 foot centers; 60 foot centers on the northeast sides of Hall B and C Overhead 120/208 volt, single phase and 3 phase Ceiling Height Predominantly 30 feet; 10,000 square foot area at 12 feet on south side of Hall A Food Service Three permanent concession stands Restrooms 7 sets of men’s and women’s rooms (2 in Halls A and C, 3 in Hall B) Freight Docks 42 enclosed docks Show Offices (overlooking halls) HALL A -1,050 square feet HALL B -800 square feet HALL C -800 square feet All the show offices on this level have restrooms Freight Access 3 drive-in doors (25 feet wide x 15 feet high) 2 overhead doors (19 feet wide x 15 feet high) Floor Load Capacity 350 lbs. per square foot Lighting Hi Bay flourescent and dimmable incandescent First Aid Permanent room; access from inside Hall A and loading dock Utilities and Services Floor Boxes on 30 foot centers contain Electrical: 120/208 volt, single phase and 3 phase T elephone/Data: Voice and data outlets; single mode and multimode fiber connections Kitchen 8,000 square-foot service kitchen on south side of Hall A 38 | EVENT PLANNING GUIDE
Washington DC Event Planner Guide Washington DC Event Planning Guide 2018: Page 38
